DYNAMIC ENGINE
AIR PRECLEANERS
Bullnose Series
Industrial, Agricultural and Earth
Moving applications.
Facilities on Highway Engines.

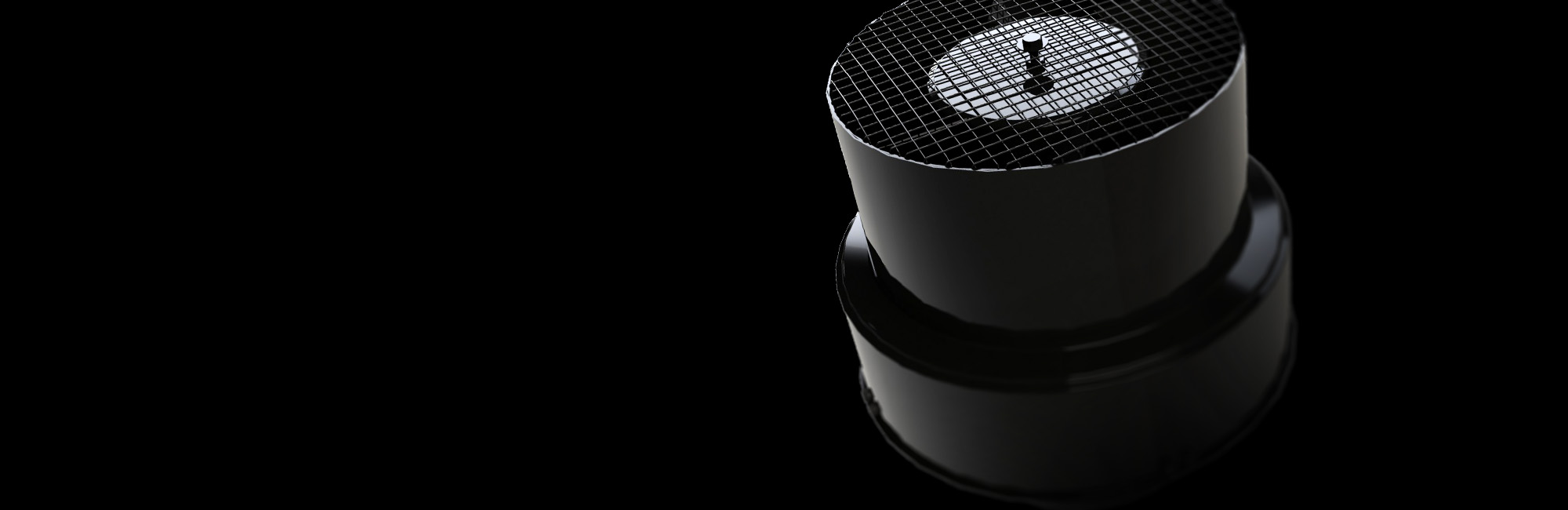

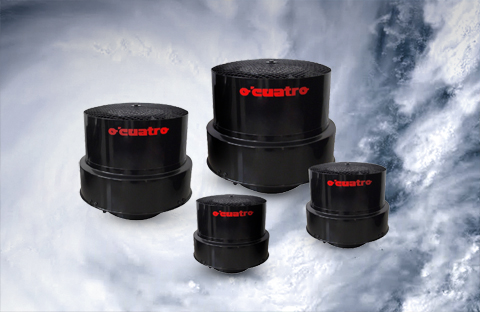

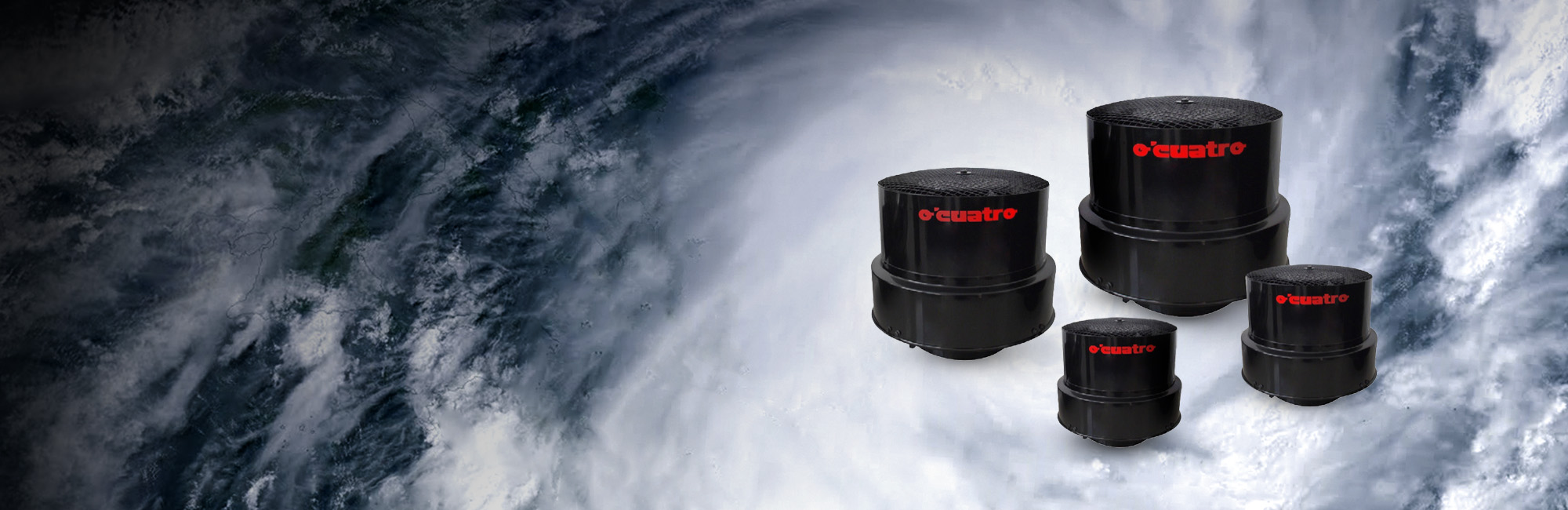

These Air Precleaners consist of a steel housing with static vanes and a rust-proof rotor mounted on dual ball bearings overdouble-welded plate steel. The electro-welded metal pre-screen at the inlet is standard. The outlet tube can be adapted with the supplied reducing sleeves for a variety of oulet choices. O'CUATRO Engine Air Precleaners are powder coated for a durable, corrosion resistant finish. Air flows range from 124 to 1411 CFM (3.5 to 40.0 m3/min.).
AIRFLOW RANGE:
3,5 to 40,0
m3/min.

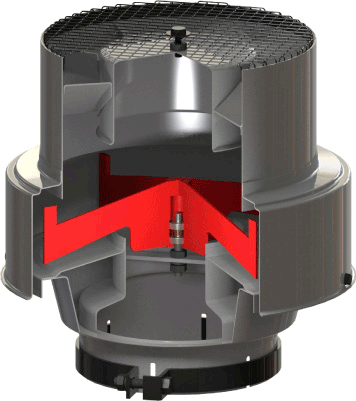

HOW THEY WORK
O'CUATRO Engine Air Precleaners can be installed in interior or exterior applications. If the application is exterior there must be horizontal mounting to avoid rain intrusion. Air enters the system through a pre-screen that removes large debris. It then flows through static vanes causing the air to spin. As the air spins, centrifugal force separates dust, dirt, insects, rain and snow from the air stream. The swirling air drives a high velocity rotor that acts as a blower evacuating contaminants through special discharge ports at the bottom or in the side of the unit. Only purified air flows to the air filter elements.

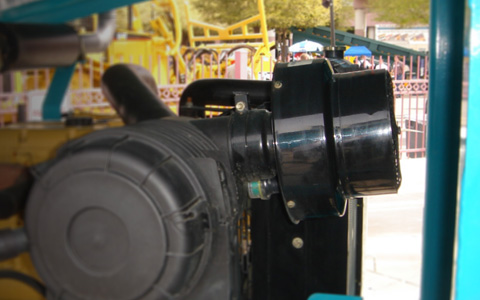

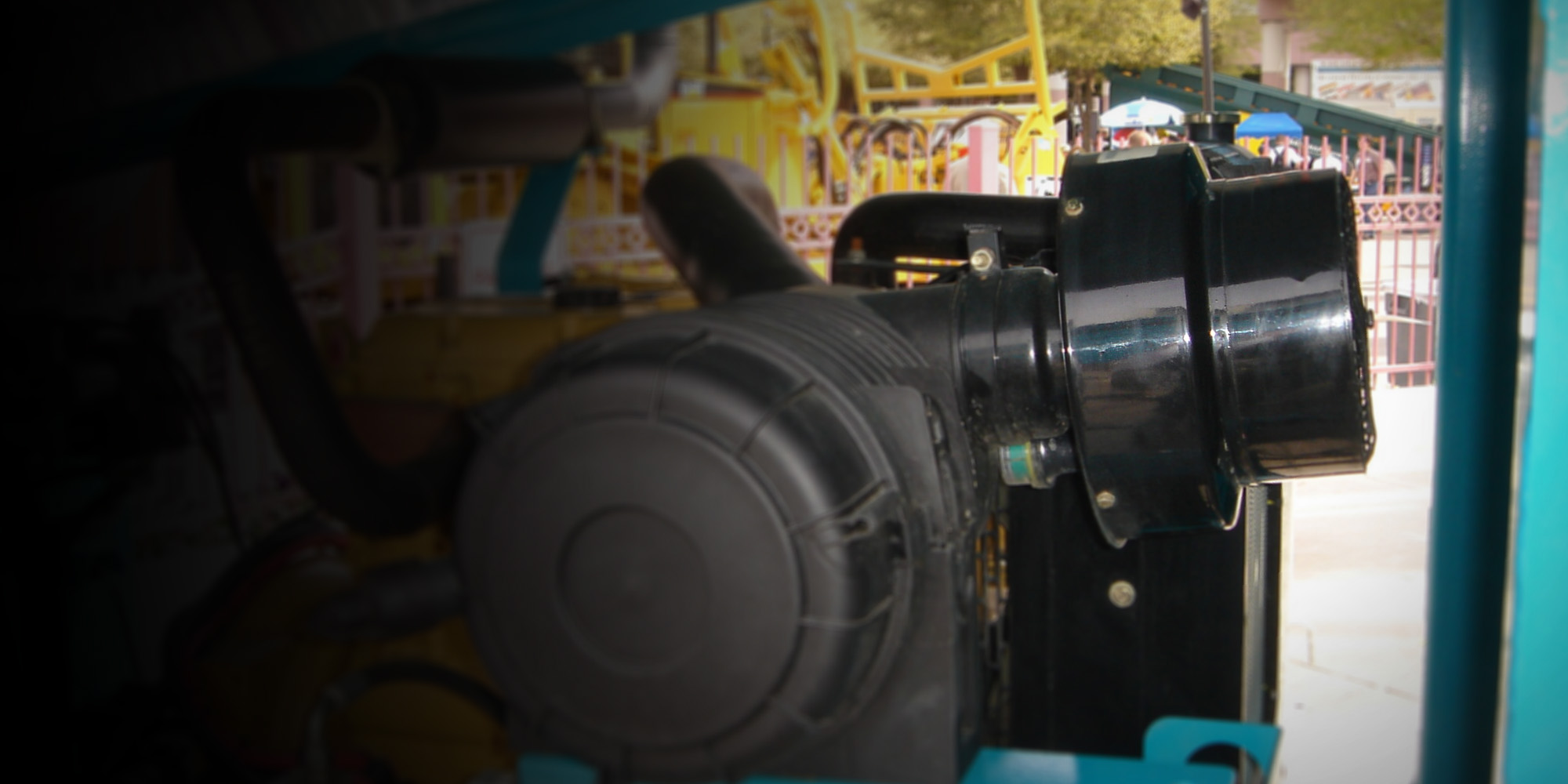

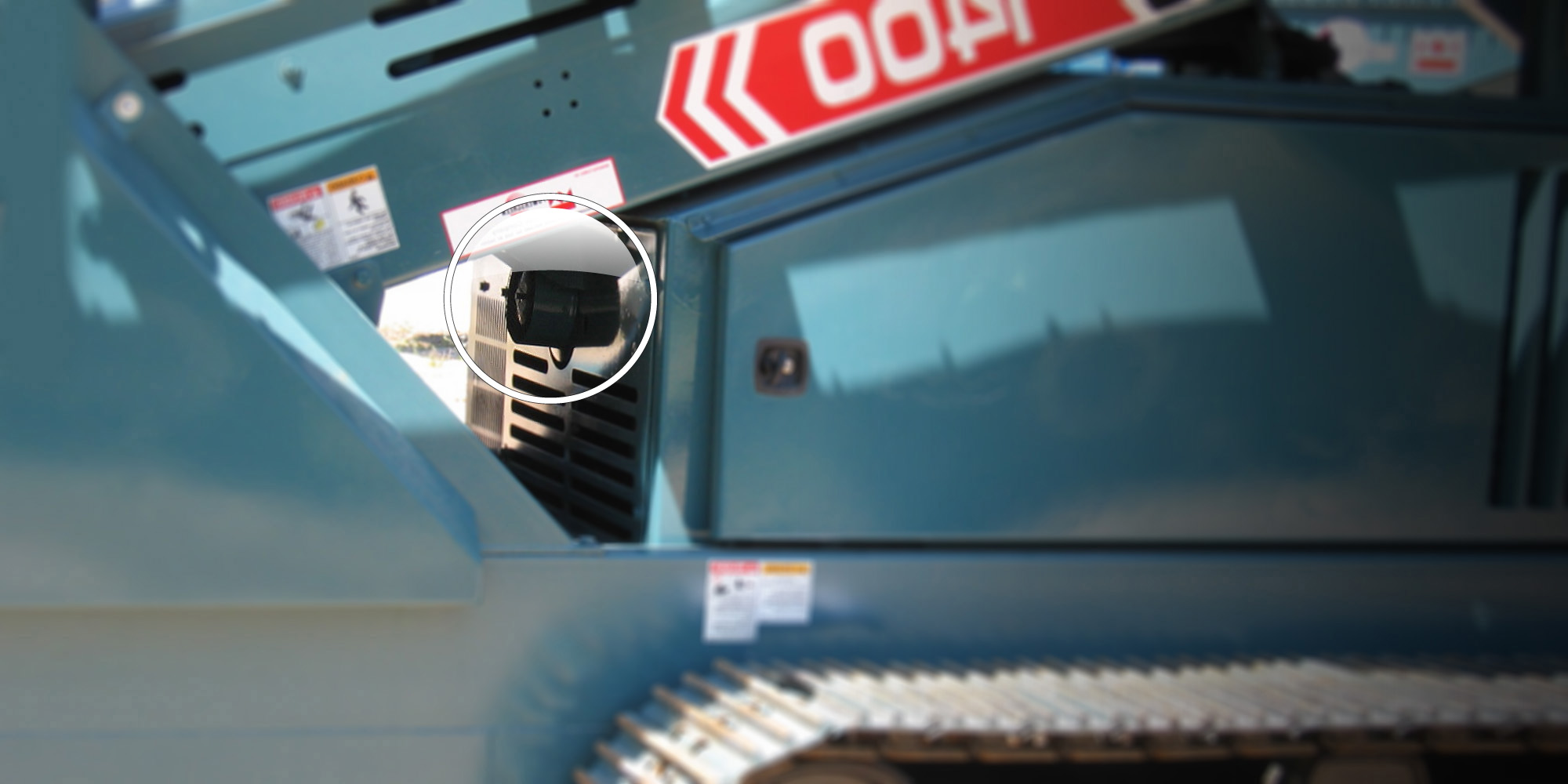

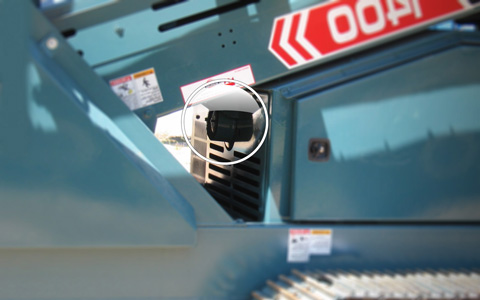

APPLICATIONSO'CUATRO Engine Air Precleaners are designed to be mounted on or connected to the air filter intake of a gasoline, diesel or compressed natural gas engine air cleaner. Their applications include trucks, buses, industrial equipment, agricultural machinery; earth moving, construction and mining equipment; pumping plants; generator sets; material handling equipment; snow removal equipment and street sweepers, etc.
PERFORMANCE
