DYNAMIC ENGINE
AIR PRECLEANERS.
KC Series
For Agriculture,
Earth Moving Machinery,
Trucks and Stationary Applications

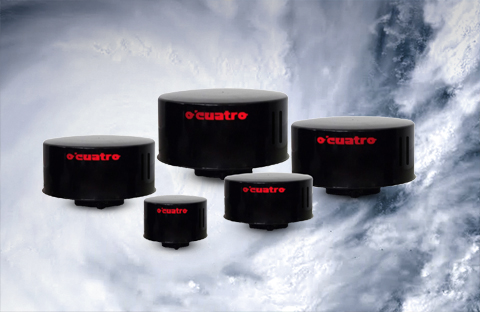

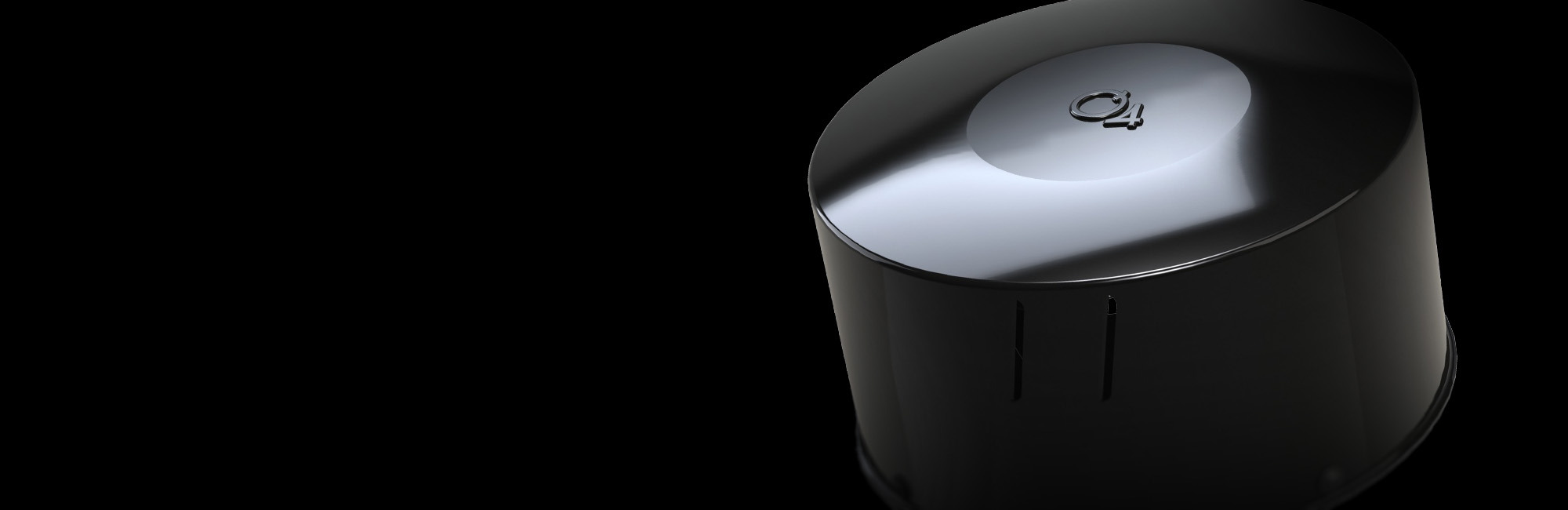

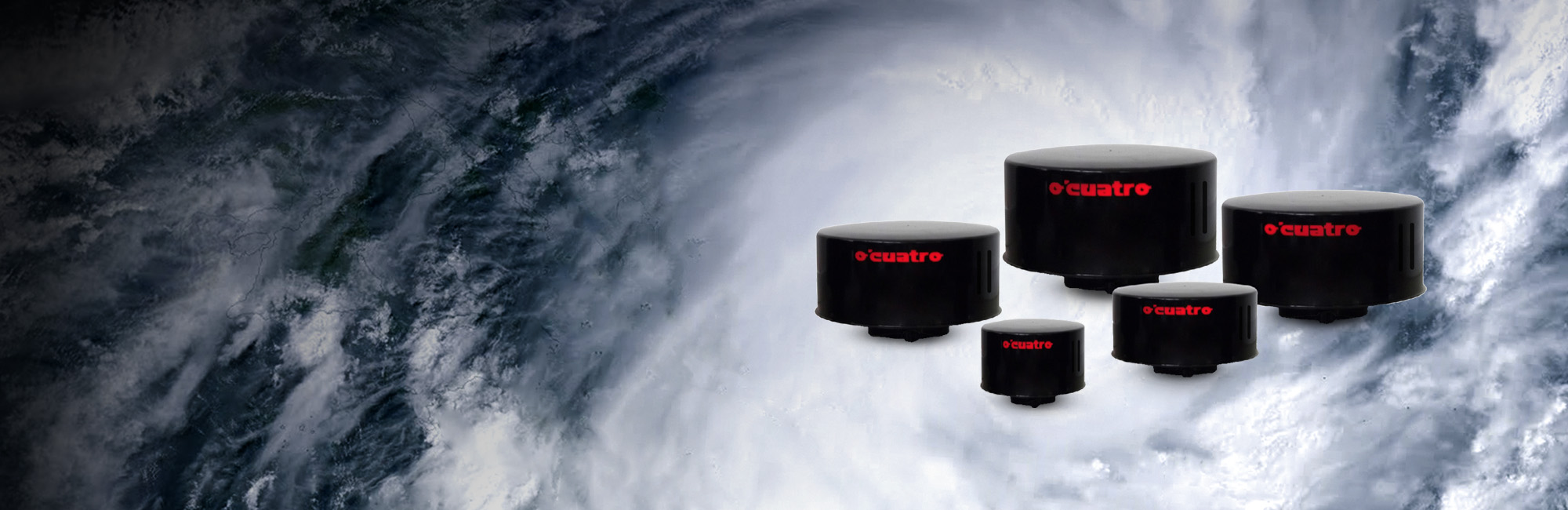

These Air Precleaners consist of a steel housing with static vanes and a rust-proof rotor mounted on dual ball bearings. The perforated metal pre-screen at the inlet is standard. The outlet tube can be adapted with the supplied reducing sleeves for a variety of outlet choices. O'CUATRO Engine Air Precleaners are powder coated for a durable, corrosion-resistant finish. Air flows range from 21 to 1411 CFM (0.6 to 40.0 m3/min).
AIRFLOW RANGE:
0,5 to 43,0
m3/min.

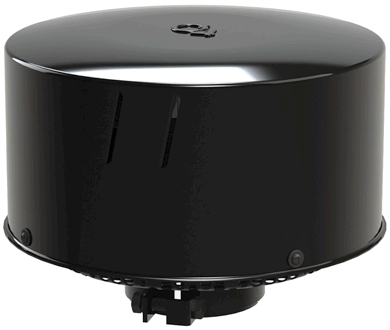

HOW THEY WORK
At first stage, air enters the precleaner portion through static vanes, causing the air to spin. As the air spins, centrifugal force separates dust, dirt, insects, rain and snow from the air stream. The swirling air drives a high velocity rotor that acts as a blower, evacuating contaminants through special discharge ports in the side of the assembly. Only purified air flows to the air filter elements (primary and safety stage of filtration). These elements retain the 99,9% of the contaminants which were not eliminated in the first stage. Then clean air flows to the engine through the outlet pipe..

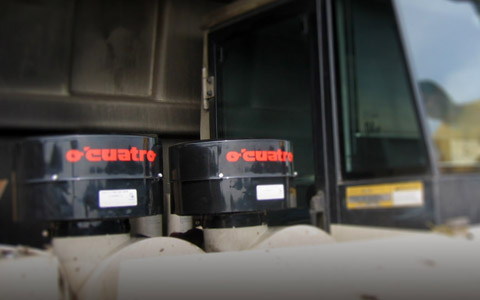

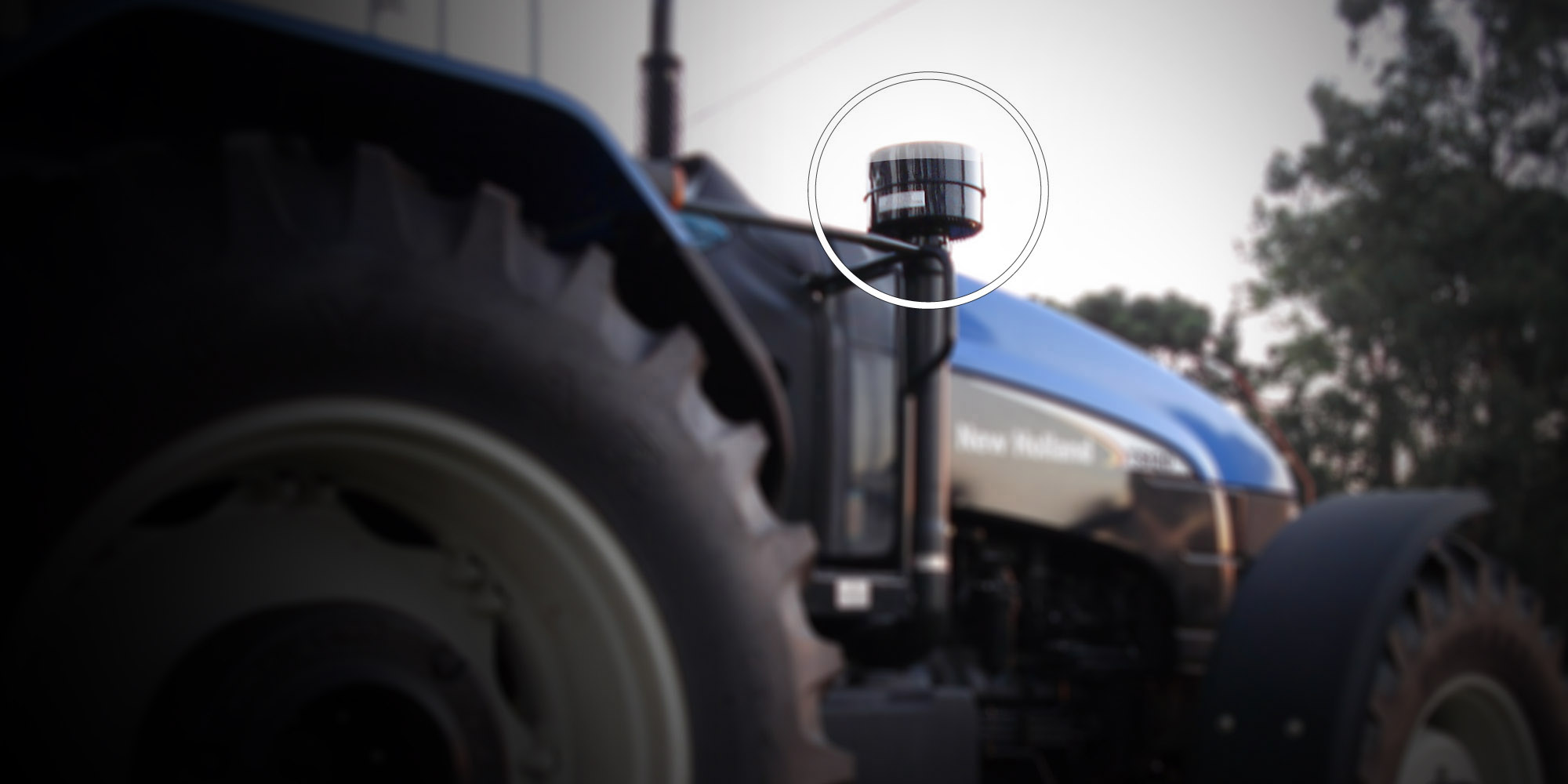

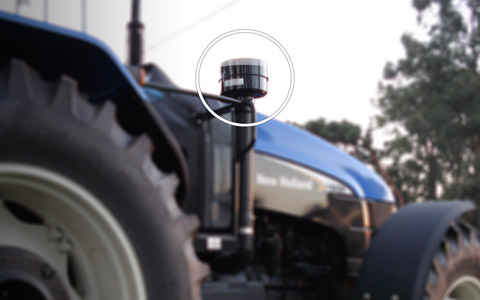

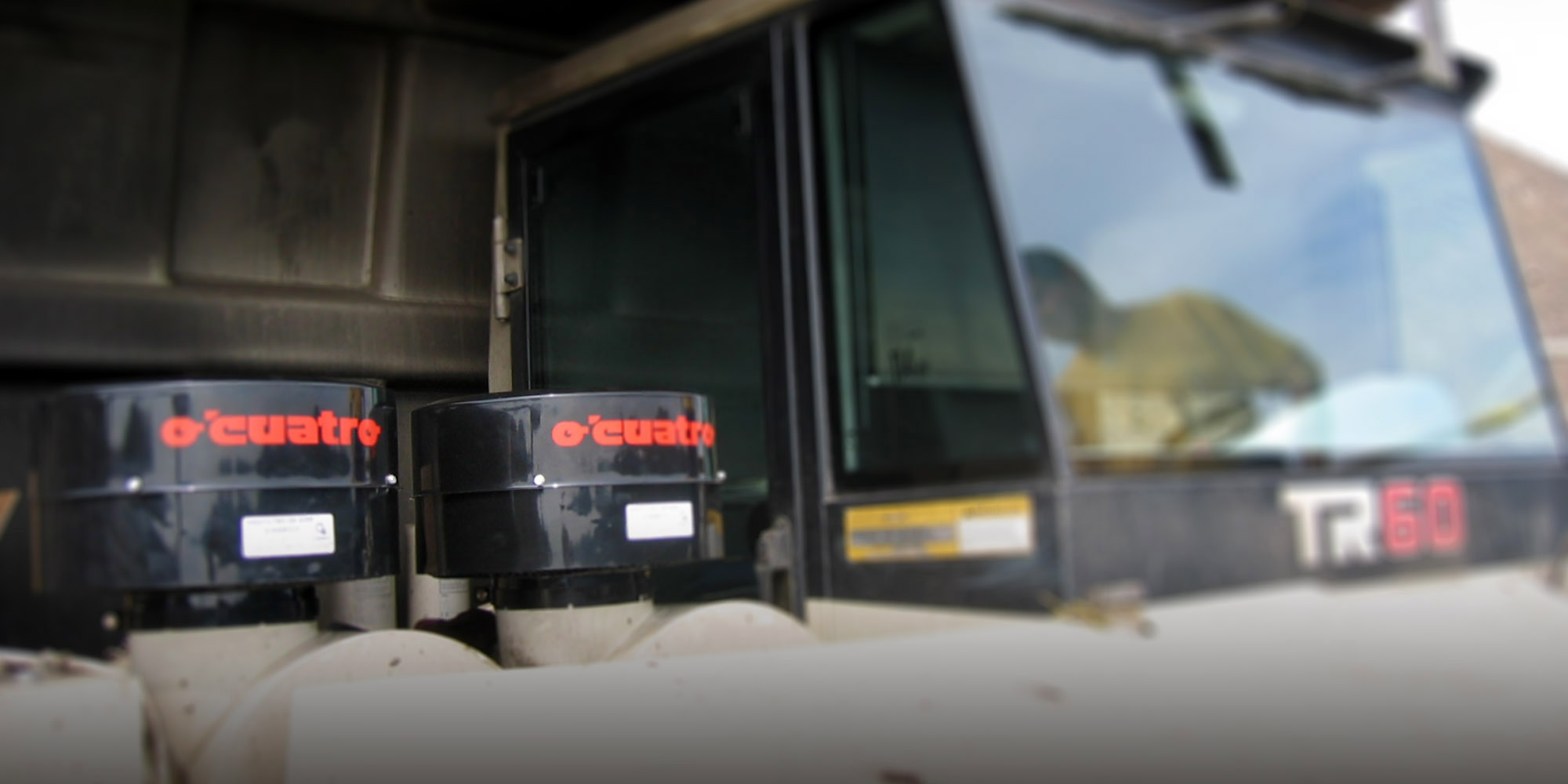

APPLICATIONSO’CUATRO Engine Air Precleaners are designed to be mounted on or connected to the air filter intake of a gasoline, diesel or compressed gas engine air cleaner. Their applications include all fast-moving mobile equipment such as trucks, buses and recreational vehicles.
PERFORMANCE
